LuxiBright® is the name of our proprietary hybrid lighting technology that offers a high degree of design flexibility and combines high intensity, high uniformity & quality color light in a small footprint with an ease of integration.

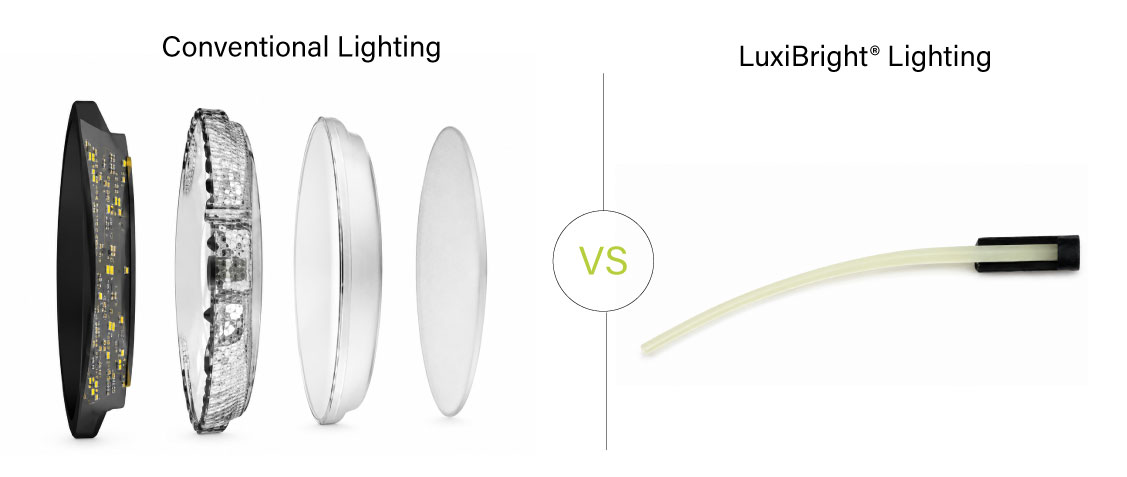

Conventional lighting relies on multiple LEDs, optics, reflectors and thermal components. LuxiBright® delivers intensity, directionality and uniformity from one engineered optical fiber.
Multiple LEDs, lenses, reflectors and heat sinks: every additional component adds size, weight and integration complexity, while making uniform illumination harder to achieve.
LuxiBright® is a high-candela1, low etendue2 light source engineered to deliver a unique combination of performance characteristics.
The light distribution and generation is controlled at the nanoscale, creating consistent brightness along one or several illuminated segments of the fiber side, without relying on additional diffusers. This ensures that your lighting functions are met with superior precision and consistency, offering an ideal solution for applications without compromise, where uniformity and intensity are equally critical.
Thousands of candelas can be emitted from a single module, without significant heat generation. This efficient design ensures powerful, focused illumination in compact spaces, with minimal thermal management required.
Precisely engineered emission side angles from 15° to 80° deliver controlled illumination without the need for bulky secondary optics. This versatility allows for tailored lighting solutions that comply with regulatory or any specific requirements while simplifying integration and maintaining high performance in light directionality and intensity.
Straight, curved or three-dimensional, LuxiBright® accommodates to the product, not the other way around. This flexibility makes it ideal for applications requiring zoned lighting or having constraints in integration challenges. LuxiBright® is an all–in–one streamlined lighting solution.
[1] A candela is the unit of the luminous intensity and measures the luminous power per unit solid angle emitted by a light source in a particular direction.
[2] The “etendue” is a fundamental property in optics that measures how spread out light is in both area and angle. It follows the conservation of energy law, i.e. the etendue cannot be decreased or increased; it is a conserved quantity.
Want to know more ?

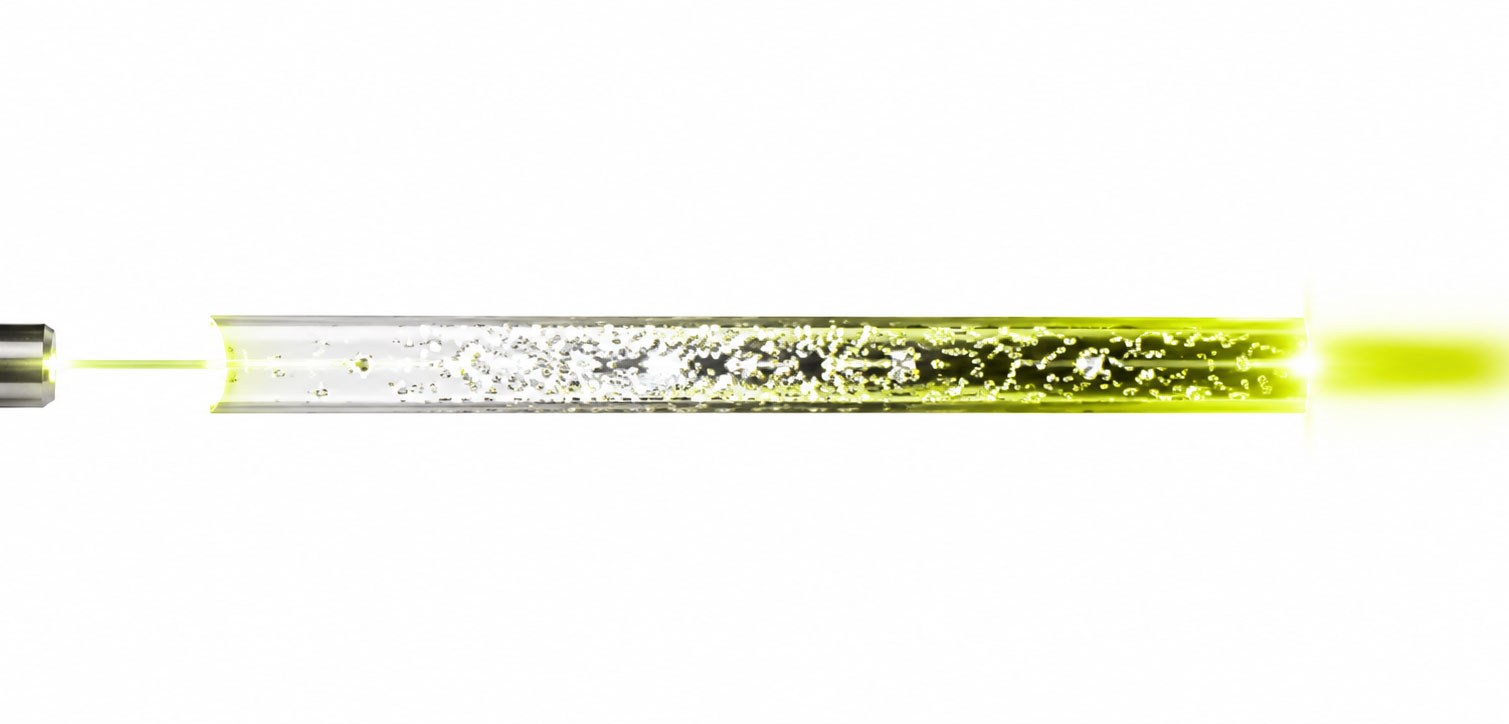

A laser launches an optical signal into a nano-active optical fiber. The optical signal will interact with two different types of structures integrated inside the multi-material, engineered optical fiber, i.e. nano-antennas and active pigments (forming the so-called nano-active structures).
The nano-antennas are glass nano-structures integrated inside the engineered optical fiber and their role is to give a specific directionality to the optical field from the side of the optical fiber. The 3-dimensional shape, strength and location of these nano-antennas offer the possibility to design a specific side lighting angle from few degrees up to few tens of degrees at any location along the engineered optical fiber.

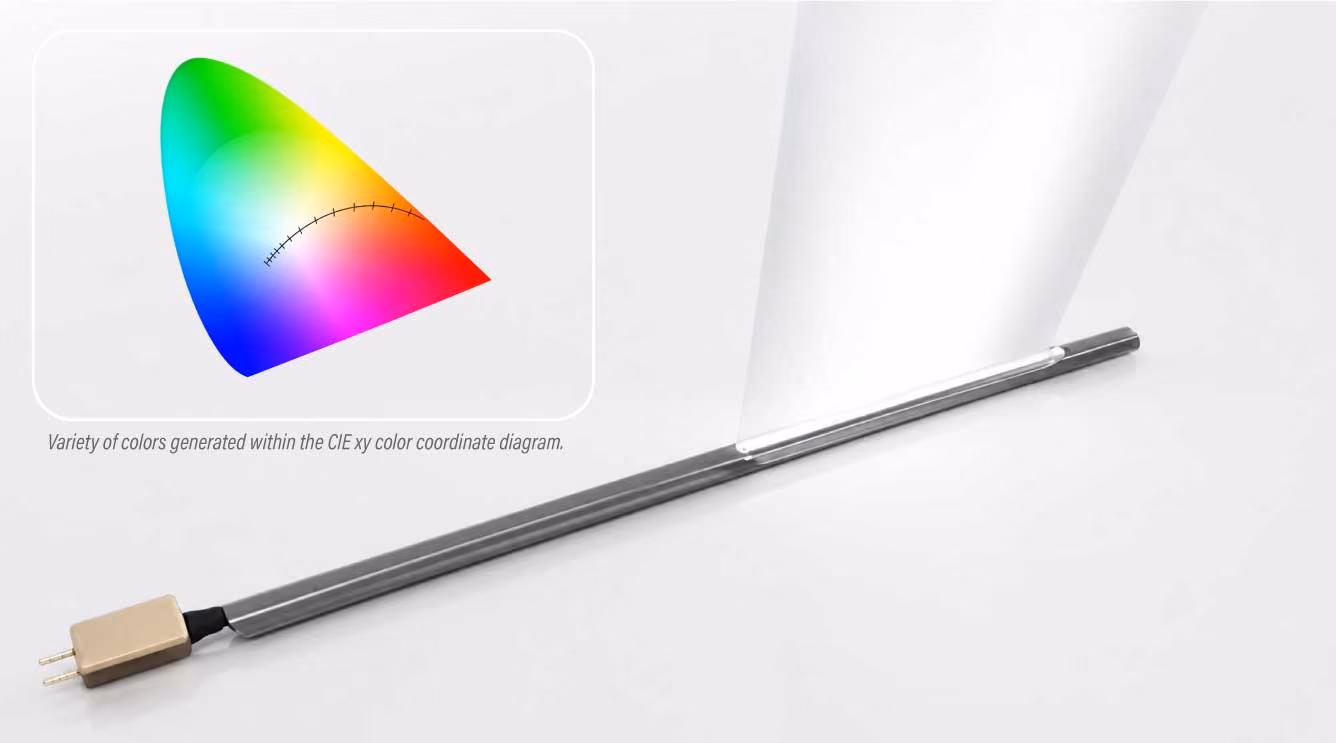

The active pigments are formulated and inserted inside the hybrid material of the engineered optical fiber to up- or down-convert the primary light of the laser and deliver the final colorful light. As the technology involves low thermal quenching a full variety of optical pigments can be advantageously used to design almost any colors with high conversion efficiency at any location along the engineered optical fiber.
A laser injects an optical signal into the engineered fiber.
Embedded nano-antennas control where and in which direction light is emitted.
Active pigments transform the primary optical signal into the desired final color.
EXPLORE THE SCIENCE BEHIND LUXIBRIGHT® +
Assess the impact of your industry
LuxiBright® nano-active fiber optic technology brings uniform, ultra-thin illumination, turning every surface of the vehicle into a design statement.
Learn more about this industry
→
LuxiBright® delivers the precision, uniformity and intensity that automated inspection demands, revealing the defects standard LED lighting leaves hidden, at full production speed.
Learn more about this industry
→
When patient safety is on the line, no defect can slip through. LuxiBright® provides glare-free, ultra-uniform lighting revealing cracks, particles and contamination on vials, syringes and ampoules while reducing inspector fatigue, hour after hour.
Learn more about this industry
→
